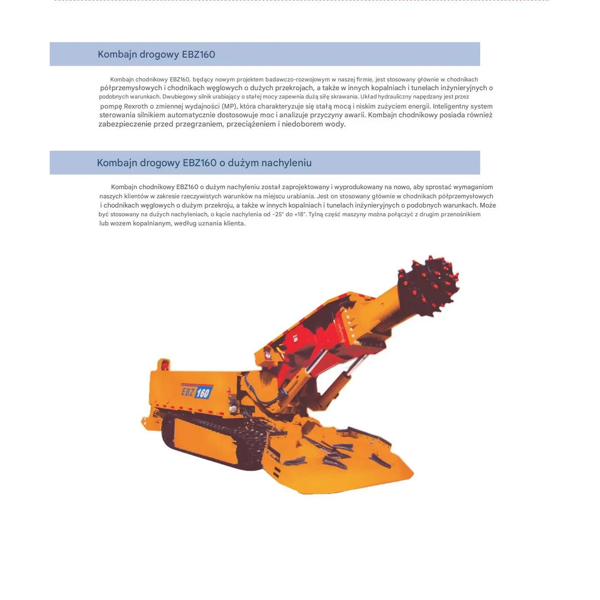

Roadheaders EBZ160 EBZ160 walkway harvester with telescopic boom for positioning of the cut. The hydraulic system uses imported hydraulic components with high reliability. It adapts to a minimum cross-section of 7 square meters. It is suitable for working in coal mines, waterproof tunnels, engineering excavations, potassium mines, sodium mines, bauxite mines and other geological conditions with a hardness factor of f8. Equipped with a scraper conveyor, it enables fast excavation and uninterrupted transport. Cutting power: 160 kW Maximum Cutting Hardness: F7.5 Minimum Drift Section (W*H): 3.1m * 2.2m The EBZ160 road harvester is equipped with an explosion-proof and intrinsically safe distribution box and an intrinsically safe control box, which are characterized by small dimensions, flexibility of operation, safety and reliability. The main controllers are mounted in a sealed housing, which effectively protects against electromagnetic interference. The operating conditions are displayed on the LCD screen. The device has overvoltage, motor overload, short circuit and leakage current protection functions. It is equipped with an internal spray system with high dust removal efficiency. The hydraulic system is simple and easy to maintain. Hydraulic system The EBZ160 type road harvester uses constant power, pressure cut-off and load sensitivity control. Cutting head The cutting head has been optimized by emulation technique, the system of cutting teeth is rational, and the rock crushing ability is strong. Spray system The sprinkling system of the EBZ160 road combine consists of an internal and external sprinkling system. The internal sprinkler system is used for sprinkling behind the teeth. It has a water leak detection function. The design of the external sprinkler system is efficient. The first conveyor The first conveyor has a simple design and is seamlessly connected to the slip-on plate. Moving is done without obstacles. Travel mechanism The drive system integrates the motor and reduction gearbox with advanced international technology. Its torque is high and suitable for working with a large inclination angle. If there are weight or overall height restrictions during transport, the roadheader can be dismantled for transport. Features and accessories Cutting boom Low-height design Cross Cutting Head / Longitudinal Cutting Head Low ground pressure Fireproof electrical appliances Cooling system Specification Value Maximum cutting height 4800 mm Maximum cutting width 5400 mm Excavated Section Shape Any Profile of commercial excavations 8~22m² Hill climbing capacity ±16° Travel speed 0~5.3m/min Average Soil Pressure 0.145MPa Uniaxial compressive strength of carbon and rocks ≤75 MPa Overall dimensions (L x W x H) 9242×2400×1650 mm Machine width 2400 mm Shovel blade width 2900 mm Clearance height 2100 mm Clearance width 3000 mm Minimum working height 2200 mm Minimum working width 3200 mm Maximum size of non-separable parts 3390×1180×1501 mm Maximum weight of a monolithic element 6 tons First conveyor width 540 mm Container Specifications 40ft Frame Container + 40ft Open Container Height of the gates
