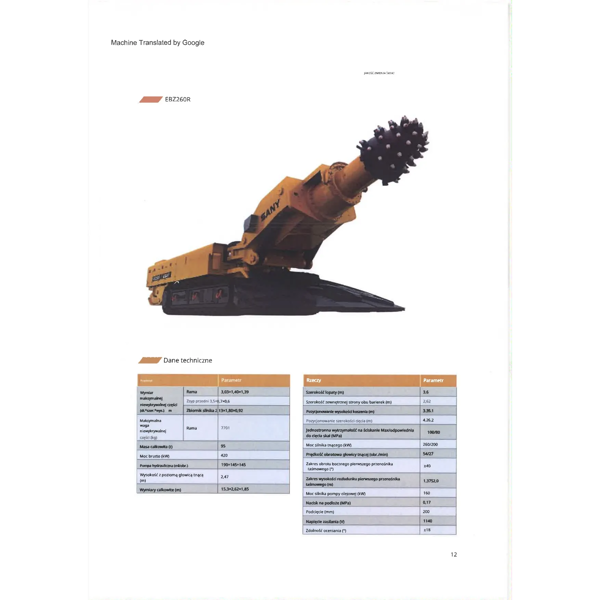

The EBZ260R mining roadheader is a powerful mechanized tunneling machine manufactured by SANY HEAVY EQUIPMENT CO. LTD , a well-known company in China, which is widely used for both mineral mining and rock tunneling. The EBZ260R mining roadheader, along with the EBZ200 and EBZ160 models, is part of a series of machines that offer improved boom kinematics. This series has a lower profile with a flat top surface that can be used as a work platform for installing monorails, pipes, cables, bends, etc. This also increases the machine's stability. The loading table incorporates sprockets with an independent drive, reducing the power required for conveyor changes. The table's steel structure is very strong, provides increased track clearance, and improves maintenance access. The machine has lever-type stabilizers for improved horizontal control, allowing the roadheader to "dive" down inclined layers, and increased hydraulic power unit efficiency. The EBZ260R roadheader is equipped with digital control. The main controller is installed in a sealed enclosure that blocks electromagnetic interference. Operating status statistics are displayed on an LCD screen. Centralized software is used. All operations are programmed in intuitive user interface windows. The control system is resistant to voltage fluctuations and includes protection against overvoltage, motor overload, phase break, short circuit, overheating, and ground leakage. Technical Data Shovel width (m) – 3.6 Width of the outer side of both barriers (m) – 2.62 Cutting height positioning (m) – 3.35.1 Cutting width positioning (m) – 4.26.2 One-sided compressive strength Max/suitable for cutting rocks (MPa) – 100/80 Cutting motor power (kW) – 260/200 Cutting head rotation speed (rpm) – 54/27 Side rotation range of the first belt conveyor (*) - +/- 40 Unloading height range of the first belt conveyor (m) – 1.3752.0 Oil pump motor power (kW) – 160 Ground pressure (MPa) – 0.17 Undercut (mm) – 200 Supply voltage (V) – 1140 (1000) Judging ability (*) - +/- 18 Dimension of maximum undetectable part (L*W*H) m: Body frame - 3.03x1.40x1.39 Front chute – 3.5x0.7x0.6 Engine tank – 2.13x1.8x0.92 Maximum weight of undetectable part (kg) - Frame - 7701 Total weight (t) – 95 Gross power (kW) – 420 Hydraulic pump (ml/rev) – 190+145+145 Cutting part height (m) – 2.47 Overall dimensions (m) – 15.3x2.62x1.85 Contact us, we speak Ukrainian, Polish and English. Carbomech Sp. z o. o. (CARBOMECH LTD - English) https://rejestr.io/krs/232157/carbomech Registration data: Tax Identification Number 648-10-11-628 REGON 272082837 Sviatoslav Makieiev Marketing Inspector WhatsApp : +48 733 275 085 Weixin/WeChat: wxid_wz4n79kz1he022 Tel.: +48 660 284 220; Fax: +48 32240 17 13 📧 s.makieiev@carbomech.com.pl 🌐 https://carbomech.com.pl
