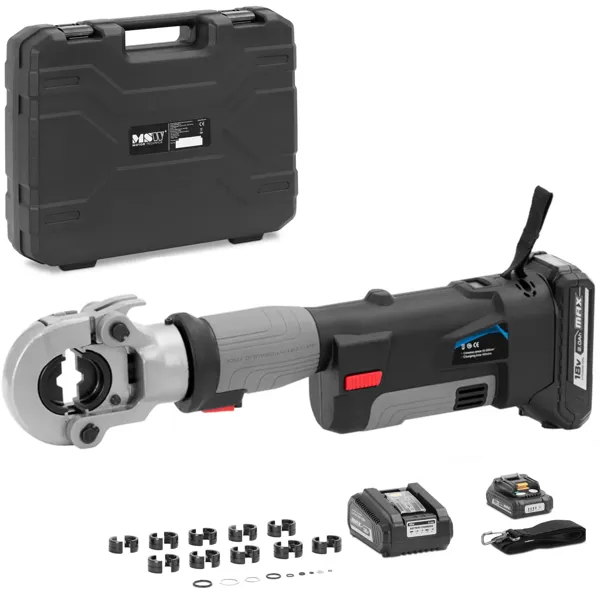

Manufacturer code: 10062612 The MSW hydraulic cable crimper is the ideal tool for electrical and automotive workshops, as well as DIY enthusiasts. It creates durable cable connections in seconds. Thanks to one-handed operation and an ergonomic handle, this task is not only easier but also significantly faster than other methods. The cable crimper boasts a compact and ergonomic design. A non-slip rubber grip and an optimized center of gravity ensure safe operation. A powerful LED light allows you to work with adequate illumination. The OLED dot-matrix display also displays the crimping time (2.5 to 4 seconds), battery charge level, and information such as maintenance reminders and error codes. The crimping head can be freely rotated 360 degrees around its longitudinal axis, making it easy to reach even corners and other hard-to-reach areas. Working with this device is simple. Simply prepare the components and firmly press the cable end with one hand. The device operates with a force of up to 60 kN. The cordless cable crimper automatically detects the maximum pressure using a microcomputer, retracts the plunger, and releases the crimped wire. In the event of a malfunction, simply reset the plunger manually. The wide crimping range with the hexagonal profile ranges from 16 to 300 mm². The advantage of hexagonal crimping is that the conductors of the electrical cable are crimped very evenly thanks to simultaneous pressure from all sides. The device is ideal for mobile use, as it comes with a shock-resistant carrying case that safely stores all parts. A practical shoulder strap makes it easy to transport to the site. Product features: - Hydraulic crimping tool for crimping and crimping cable lugs, - Cable crimping tool for quick and safe crimping of copper or aluminum lugs, - Hydraulic crimping pliers with a range of 16, 25, 35, 50, 70, 95, 120, 150, 185, 240 and 300 mm², - Quick jaw change makes the cordless cable crimping tool the ideal workshop companion, - The microcomputer-controlled cable crimping tool automatically detects the maximum pressure and crimps the lugs at the push of a button on the ergonomic handle. Technical parameters: - Catalog number - 10062612 - Article condition - New - Model - MSW-PRTO1.0 - Frequency [Hz] - 50/60 - Material - Rubber, Plastic, Steel - Color - Black, Gray - Voltage [V] - 100-240 - Cycle time [s] - 2.5-4 - Capacity [Ah] - 2.0 - Rotation range [deg;] - Clamping head: 360 - Protections - Overheating / overload protection - Charging time [h] - 0.4 - Clamping force - 60 kN - Clamping range - Cu: 300 mm² / Al: 240 mm² - Ambient temperature [deg;C] - -10 - 40 - LED lighting - Yes - Battery powered - Yes - Case included - Yes - Number of charging cycles - 12 - Oil tank capacity [l] - 0.6 l - Dimensions (LxWxH) - 43 x 9 x 12 cm - Weight - 3.8 kg - Shipping dimensions (LxWxH) - 51 x 42 x 16 cm - Shipping weight - 10 kg Included in the set: - Hydraulic cable crimper - Clamping jaws (16 / 25 / 35 / 50/70 / 95 / 120 / 150 / 185 / 240 / 300 mm²) - 2 batteries - Charger - 1 set of sealing rings for the cylinder - 1 set of sealing rings for the safety valve - Shoulder strap - Carrying case
