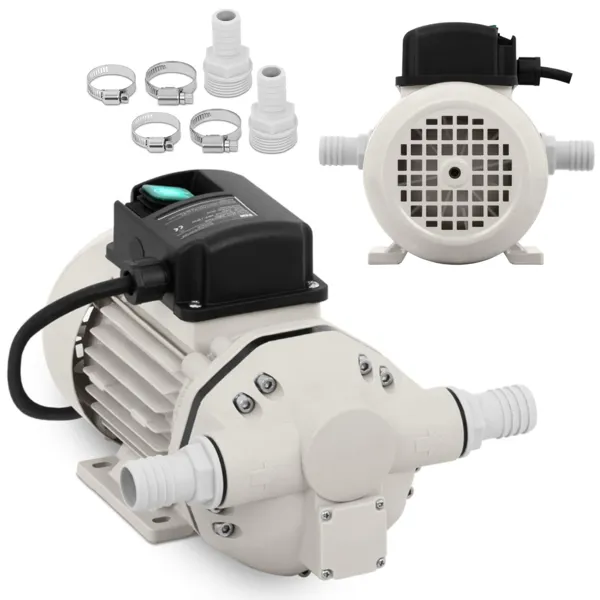

Manufacturer's code: 10060825 MSW diaphragm pump designed for fast and safe pumping of aggressive fuels and harmful liquids such as catalytic fluid, urea solution, DEF, sus32, alcohol, ethanol, ammonia or IBC and water. The dispenser is great for filling all kinds of vehicles and machines, so it will work well in workshops, garages, and stations. The device uses an electric motor without any dynamic seals, which maintains a stable body temperature. The diaphragm pump allows you to pump liquids at a speed of 40 l/min and an operating pressure of 2.8 bar. Possible operation at ambient temperature: -30 to 60deg;C. Self-priming is an operation without the need to fill the inlet channel beforehand. The pump can remove the accumulated air from the suction line on its own, so it can be above the water tank when starting. Self-priming devices have a higher suction level (up to 10 m height difference) compared to centrifugal ones. The pump will operate without damage even after prolonged dry operation. Product features: - Capacity - flow rate 40 l/min, pressure 2.8 bar, - Self-priming - works without the need to re-flood the inlet channel, - Wide range of applications - allows you to pump aggressive fuels (urea solution, DEF, sus32, alcohol, ethanol, ammonia, IBC, etc.) and water, - Durability - runs dry for a long time without damage. Technical parameters: - Model - MSW-AOP40 - Part number - 10060825 - Item condition - New - Pressure - 2.8 bar - Inlet dimensions - 24.4 mm - Outlet dimensions - 19.7 mm - Voltage - 230 V - Power - 550 W - Material - Metal - Housing material - EPDM - Operating temperature - -30 - 60deg; C - Rotational speed - 2800 rpm - Maximum suction - 5 m - Flow speed - 40 l/min - Power cord - 1.6 m (including connection part) - Dimensions (LxWxH) - 28.5 x 23 x 17 cm - Weight - 5.9 kg - Shipping dimensions (LxWxH) - 33 x 16 x 20 cm - Shipping weight - 6.4 kg Included: - Diaphragm pump - Clamp - 2 pcs. - Rubber gasket - 2 pcs. - Large hose attachment - 2 pcs. - Small hose end - 2 pcs. - Manual EN
