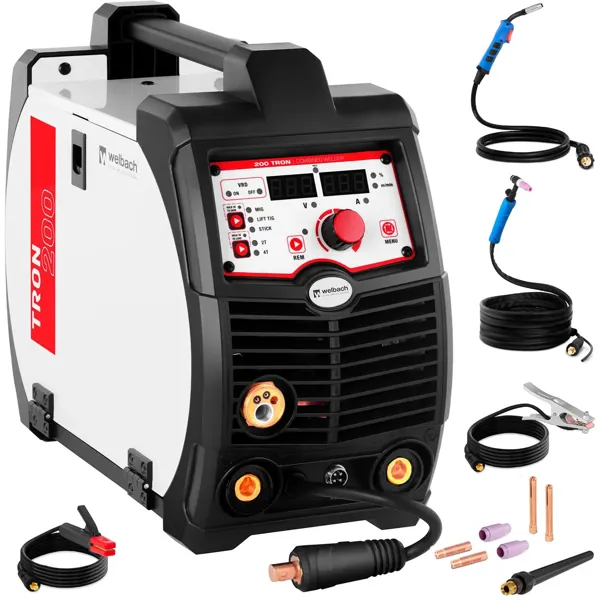

Manufacturer's code: 10020229 The TRON 200 multifunction welder enables efficient and safe metal joining using the MIG/MAG, TIG, MMA, or FCAW methods. Operating modes are easily selected, and you can quickly switch between them thanks to the efficient IGBT inverter. The result: nearly error-free, high-quality welds. The device has 10 operating programs; to set them, you simply define your own presets and save them. There's no need to re-enter welding parameters each time. The welder saves all settings. The clearly visible control panel allows you to select all parameters. The knob and buttons for function selection are easily accessible even when wearing welding gloves. The intuitive menu allows for hassle-free changing of welding parameters. Selected values are displayed on a clear LED display. In MIG/MAG welding, gases protect the weld – inert gases in MIG welding, and active gases in MAG welding. This method allows for fast and efficient welding. The wire feeder has a speed of 2 to 14 m/min and is designed for wires with diameters from 0.6 to 1 mm. For MIG welding, you can use a spool holder (not included) that feeds the welding wire directly to the torch. The synergy function allows you to optimally set all parameters during MIG/MAG welding. Select a welding current from 50 to 200 A, and the welder automatically adjusts the remaining parameters, such as welding voltage and wire feed speed. TIG - metal welding with a narrow welding zone and minimal rework. The TRON 200's TIG method uses Liftarc ignition to activate the arc. This protects sensitive electronic devices nearby, such as cell phones, computers, and control systems, from external factors. Is tungsten precipitating and having trouble with ignition? This process makes it a thing of the past – even with long hose assemblies. TIG welding is suitable for welding most metals 1 mm thick and thicker. You'll work with minimal sparks and spatter, in any position. The result: high-quality, clean welds with virtually no distortion. If you want to weld outdoors and in strong winds, choose electric arc welding (MMA). This method works without the use of additional gas. The welder generates a very stable current, ideal for achieving good welding results. The Arc Force and Anti-Stick functions activate automatically and enable comfortable welding. FCAW welding involves creating welds using a welding wire, without the use of additional gas. This makes this method very useful, ideal for minor outdoor repairs. Product features: - Versatility thanks to TIG, MIG/MAG, MMA and FCAW methods, - Easy operation - simple navigation through the digital menu with 10 programs, - Quick switching between welding functions and 2T/4T modes, - Convenience thanks to the synergy function and easy selection of the spool gun, - MMA welding with VRD, Anti Stick and Arc Force. Technical parameters: - Catalog number - 10020229 - Article condition - New - Model - TRON 200 - 2/4 Takt - Yes - Anti Stick - Yes - ARC-Force - Yes - Water cooling - No - Duty cycle [%] - 30 - Flux wire - Yes - Gas solenoid valve - Yes - Hot Start - No - MMA cable - 3 m - Insulation class - F - IEC protection class - IP21 - Maximum weldable thickness [mm] - MIG: 5 / MMA: 1.5 - 10 / TIG: 1 – 5 - Maximum input current [A] - MIG: 33.9 / MMA: 38.3 / TIG: 25.8 - Input power [kVA] - MIG: 7.5 / MMA: 8.75 / TIG: 5.6 - Voltage [V] - 230 - Welding voltage [V] - 15-24 - MMA welding current [A] - 40 - 200 - TIG welding current [A] - 15 - 200 - MIG/MAG cable - 3 m - TIG cable - 3.8 m - Ground cable - 3 m - Soft start - Yes - Efficiency [%] - ≥80% - Wire speed [m/min] - 41671 - Wire diameter [mm] - 0.6,0.8,0.9,1 - Power factor - 0.73 - TIG ignition - LIFT - Rated input current [A] - MIG: 36 / MMA: 41.7 / TIG: 27 - Dimensions (LxWxH) - 21.5 x 44.5 x 37.5 cm - Shipping dimensions (LxWxH) - 59 x 41 x 42 cm - Weight - 19.2 kg - Shipping weight - 24.8 kg Included in the set: - TRON 200 multifunction welding machine - TIG torch with cable, 3.8 m - MIG torch with cable, 3 m - MMA torch with cable, 3 m - Ground cable with clamp, 3 m - 3 collets (1.6/2.0/2.4 mm) - Collet in housing - 3 ceramic gas nozzles (4, 5, 6 mm) - TIG electrode Ø2 mm - MIG gas nozzle - MIG contact tip, Ø0.8 mm - Long torch cap - Short torch cap
