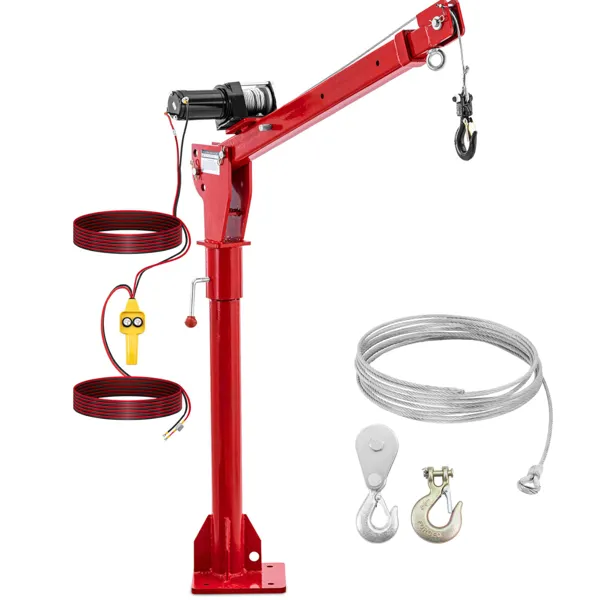

Manufacturer's code: 10031273 The Steinberg Systems loading crane allows you to lift heavy loads both in the workshop and in the field. It is attached to a van using a 250 x 250 mm base. Holes are drilled into the base for easy mounting on a truck bed. The lifting arm has a maximum reach of 149 cm. Shortening the arm to 128 cm increases its lifting capacity to 500 kg, and with a pulley, even to 800 kg. To rotate the lifting arm, loosen the lever and then lock it. The bearing-mounted head of the loading crane can be precisely moved in any situation. The cable winch is attached to the lifting arm of the workshop crane. It operates on 12 V DC and has an output power of 1000 W. This allows for a lifting speed of up to 3.6 m/min. The rope has a diameter of 4.8 mm and securely holds any load up to 800 kg attached to the hook. The 4.5 m long steel rope is designed for lifting heights up to 1.94 m. The device fits open-top vehicles but can also be installed in vehicles with closed cargo areas or used in workshops. Product features: - 12 V cable winch lifts loads up to 500 kg, and with a pulley up to 800 kg, - Holes in the base allow you to attach it to the cargo area of a car, - The lifting arm can be extended up to 149 cm and rotated 360 degrees, - Lifts objects at a speed of 3.6 m / min to a maximum height of 1.94 m, - Strong rope with a diameter of 4.8 mm and a maximum length of 4.5 m. Technical parameters: - Catalog number - 10031273 - Article condition - New - Model - SBS-PTC-500 - Material - Stainless steel, Steel - Base dimensions [mm] - 250x250 - Color - Red - Lifting speed - without pulley [m / min] - 3.6 - Load capacity - without pulley [kg] - 500 - Lifting speed - with pulley [m / min] - 3.6 - Load capacity - with pulley [kg] - 800 - Maximum lifting height [m] - 1.94 - Power cable [m] - 4.2 - Maximum load [kg] - 800 - Rope length [m] - 4.5 - Rope diameter [mm] - 4.8 - Voltage [V] - 12 - Power [W] - 1000 - Dimensions (LxWxH) - 116 x 36 x 130 cm - Weight - 52.8 kg - Shipping dimensions (LxWxH) - 139 x 37 x 38 cm - Shipping weight - 64.5 kg Included in the set: - Loading crane
