Specifications:

Touch keypad: no
Doorbell button: no
Type: Combination lock
Protection degree (IP): 68
Supply voltage: 12V DC
Operating mode: finger / card / code
Transmission type: Wired
Number of relay outputs: 1
Frequency: 125 kHz
Load capacity: 3A
Max. number of users: 10000
Dimensions - width: 70mm
Mounting: surface-mounted
Proximity reader: yes
Encrypter: yes
Dimensions - height: 140mm
Dimensions - depth: 24mm
Possibility of granting temporary access: no
Possibility of granting permanent access: no
Backlight: yes
Fingerprint reader: yes



The autonomous combination lock combines the functions of a touch keypad for access control, a card and proximity key fob reader and a fingerprint reader. This modern device works with electromagnetic locks that use an access control system. It can also control other electrical or alarm devices. The lock has 1 relay output. Authorized persons can enter the room or building after reading the card, entering the access code or scanning a previously saved fingerprint. The non-volatile EPROM memory remembers the stored codes and parameters in the memory in the event of a power failure. Durable and extremely resistant housing to changing weather conditions. The lock is suitable for surface mounting. Glowing LEDs indicate the operating status of the encryptor. The set includes two cards (OR-ZS-892) and two proximity key fobs (OR-ZS-890).


**

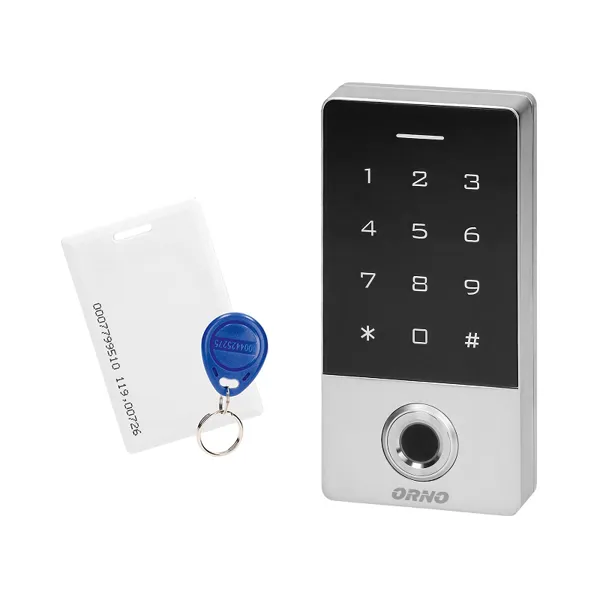

Illustrative photo.
