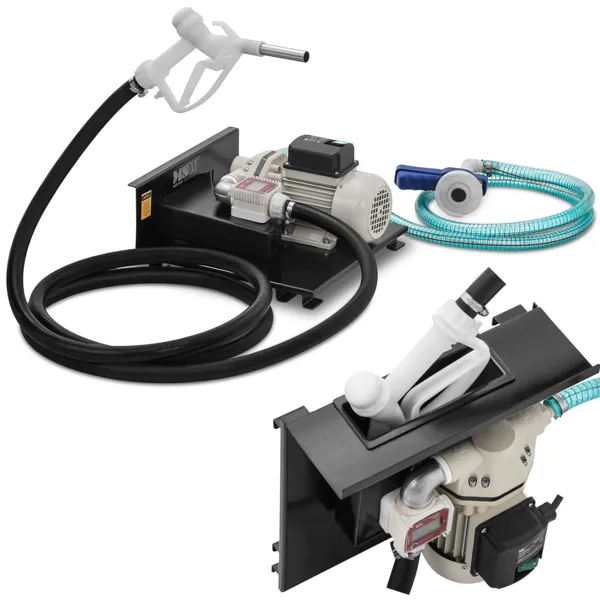

Manufacturer's code: 10060826 MSW diaphragm pump designed for fast and safe pumping of harmful liquids such as urea. The pump is equipped with two hoses and a nozzle that controls pumping. A digital counter is connected to the dosing hose. The pump is mounted on a frame made of stainless steel, with a holder for IBC and TOTE tanks. The self-priming pump can be mounted above the tank from which the fluid is to be drawn. The suction power is 3m. The built-in pressure switch starts and stops automatically as soon as the supply valve is opened. The flow rate is 35-45 l/min. at a pressure of 5 bar. In addition to urea, the pump can also be used for other liquids such as urea solutions (DEF or Sus 32), alcohol, ethanol, ammonia, windshield washer fluid, organic acids and other non-flammable substances. The design of the urea pump is particularly durable and cannot be damaged if it is running dry for a long time. Product features: - Accessories - complete set with bracket, hoses and nozzle, - Power - self-priming pump, flow rate 45l/min at 5 bar, - Versatility - for urea and other substances, - Precision - counter for checking the liquid taken, - Easy installation - steel bracket for mounting on IBC and TOTE containers. Technical parameters: - Model - MSW-AOP40S - Part number - 10060826 - Item condition - New - Pressure - 5 bar - Inlet dimensions - 20 mm - Outlet dimensions - 20 mm - Voltage - 230 V - Power - 550 W - Material - Metal - Housing material - EPDM - Operating temperature - -20 - 40deg; C - Rotational speed - 2800 rpm - Maximum suction - 3 m - Flow speed - 35 - 45 l/min - Power cord - 1.9 m (including connection part) - Bracket thickness - 1.9 mm - Bracket material - Stainless steel - Suction hose length - 2 m - Outlet hose length - 4.1 m - Nozzle type - Manual PP urea nozzle - Suction hose material - EPDM - Suction hose diameter - 20 mm - Dimensions (LxWxH) - 37 x 35 x 21 cm - Weight - 11.50 kg - Shipping dimensions (LxWxH) - 42.50 x 36 x 33 cm - Shipping weight - 12.30 kg Included: - Urea pump MSW-AOP40S - Digital counter - Stainless steel frame with bracket - 3 clamps - Suction hose - Dosing hose - Fuel nozzle - Suction head - User manual
